UNI-T Smart Digital Multimeter 600VAC/DC, True RMS, AC Voltage

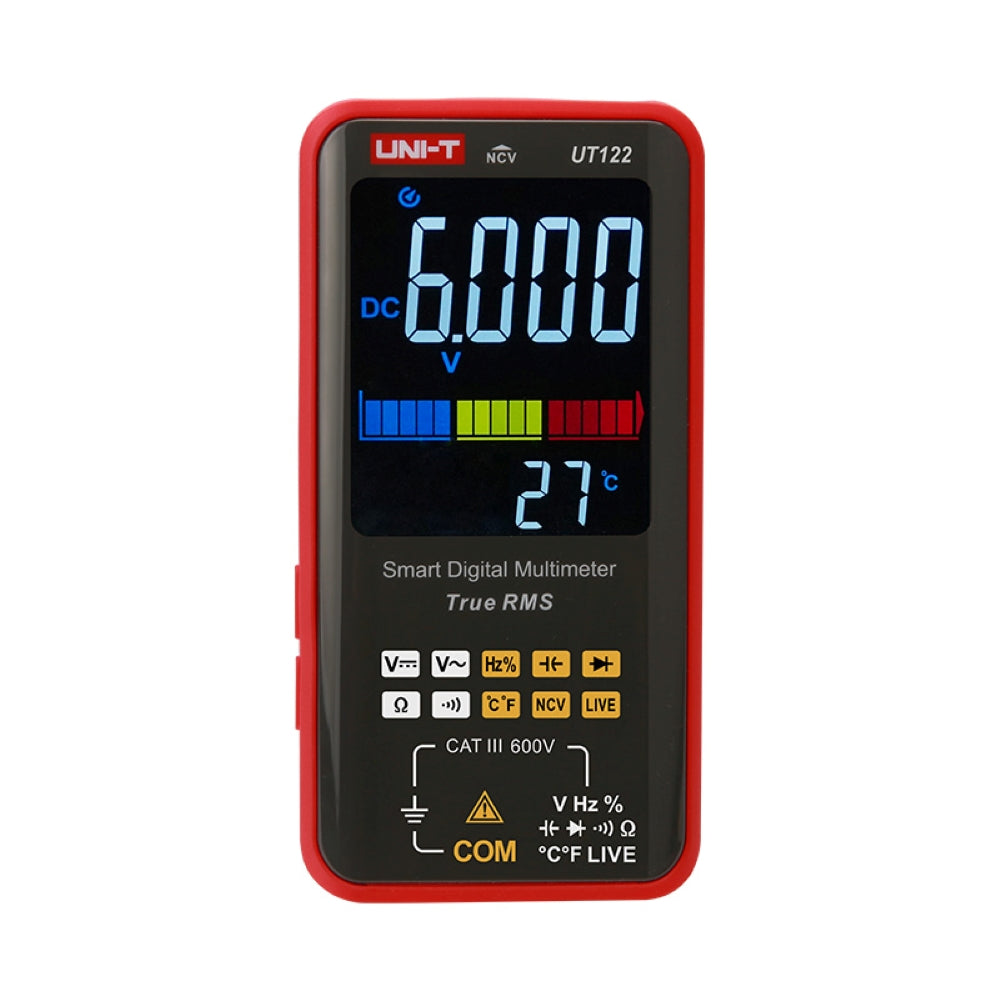

UNI-T UT122 is an ultra-thin True RMS multimeter with a large 6000-count display and auto-ranging for AC/DC voltage, AC voltage frequency, resistance, capacitance, frequency and temperature measuring. The multimeter can display two measurement results at the same time, which is convenient for home and non-professional users. This is a fast and easy to use electronic device, equipped with a built-in rechargeable lithium battery with Type-C charging.

Smart Digital Multimter 600VAC/DC, True RMS, AC Voltage FREQ:10Hz~1kHz, Resistance/Capacitance/FREQ/TEMP, Display Count:6199, Dual Display, Auto Range, NCV, Live Detection,diode Test, Continuity Buzzer, LCD High Vltge ALT, Data Hold, AutO PWR OFF, CAT III

Features

• Features of UT121 Series Smart Digital Multimeters




  ● True RMS
  ● AC/DC 600V voltage measurement (UT121A)

  ● AC 750V/DC 1000V voltage measurement (UT121B)

  ● 60MΩ large resistance measurement (UT121B)

  ● 60mF large capacitance measurement (UT121B)

  ● AC/DC 600V voltage measurement (UT122)

  ● 60MΩ large resistance measurement (UT122)

  ● 99mF large capacitance measurement (UT122)

  ● Built-in rechargeable lithium battery, Type-C charging (UT122)

  ● Temperature measurement (UT122)

  ● Full-scale input protection

  ● NCV/LIVE measurement

  ● Large size LCD screen

  ● 19mm ultra-thin body

  ● 6000counts

  ● Intelligent identification gear

  Specifications of UT121 Series Smart Digital Multimeters




  Specifications	Range	UT121A	UT121B	UT122
  AC voltage (V)	6.000V/60.00V/600.0V	±(1.0%+3)		±(1.0%+3)
  	6.000V/60.00V/600.0V/750.0V		±(1.5%+3)
  AC voltage frequency (Hz)	10Hz-1kHz	±(0.5%+2)	±(0.5%+2)	±(0.5%+2)
  DC voltage (V)	6.000V/60.00V/600.0V	±(0.7%+3)		±(0.5%+3)
  	6.000V/60.00V/600.0V/1000.0V		±(1.2%+3)
  Resistance (Ω)	6000Ω/60.00KΩ/600.0KΩ/6.000MΩ/10.00MΩ	±(2.0%+5)
  	600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ		±(2%+5)
  	600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/6.000MΩ/60.00MΩ			±(2.0%+5)
  Capacitance (F)	60.00nF/600.0nF～600.0μF/6000uF～60.0mF		±(10%+5)
  	99.99nF/999.9nF～9.999μF/9.999mF～99.99mF			10%
  Frequency (Hz)	10.00Hz-10.00MHz		±(0.1%+3)	±(0.1%+3)
  Temperature(℃/℉)	–40℃～1000℃/–40°F～1832°F		±3℃/±6℉	±3℃/±6℉
  Features
  Display count		6099	6099	6199
  Dual display		√	√	√
  Auto range		√	√	√
  NCV detection		√	√	√
  LIVE detection		√	√	√
  Diode test		/	√	√
  Continuity buzzer		√	√	√
  LCD high voltage alert		√	√	√
  Flashlight		√	√	√
  Low battery indication		√	√	√
  Auto power off		√	√	√
  Data hold		√	√	√
  Category ratings		CATⅢ 600V	CATⅢ 600V	CATⅢ 600V
  General Characteristics
  Standard accessories	UT121A: Batteries, test leads, English manual; UT121B/UT122: Batteries, test leads, temperature probe, English manual
  Power	2*1.5V AAA
  Display	UT121A/UT121B: 52*66mm; UT122: 65*55mm
  Product size	UT121A/UT121B: 143*74*17mm; UT122: 144*71*15.5mm
  Product net weight	UT121A/UT121B: 142g; UT122: 157g
  Standard individual packing	Gift box, carrying bag
