Specifications of UT200 Series 1000A True RMS Digital Clamp Meters
1
/
of
1
Three-D

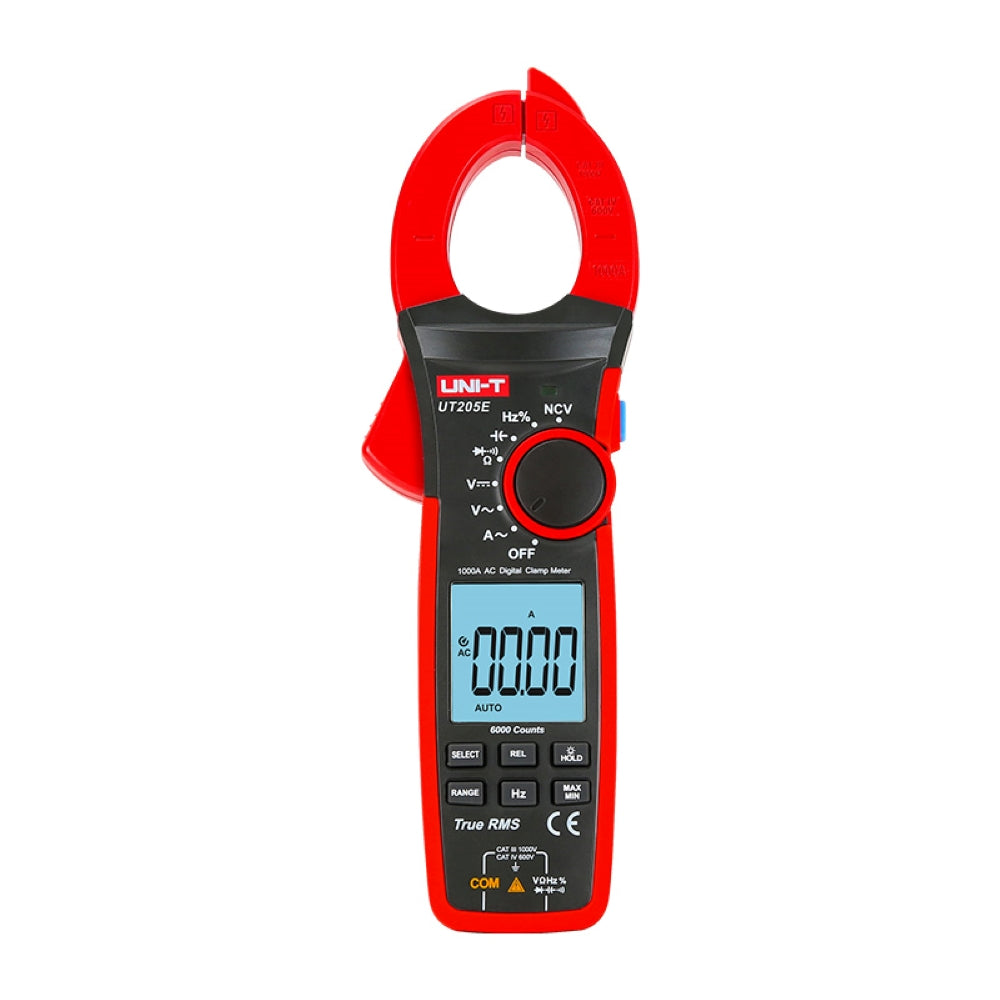

UNI-T 1000A True RMS Digital Clamp Meter
UNI-T 1000A True RMS Digital Clamp Meter
Regular price
R 1,674.00 ZAR
Regular price
Sale price
R 1,674.00 ZAR
Unit price
/
per
Tax included.
Couldn't load pickup availability
Digital Clamp Meter True RMS, 1000A AC Only, 1000V AC/DC, Auto/Manual Range, Jaw Size 42mm, Resistance 60MO, Capacitance 60mF, Frequency 1MHz, Temperature 1000°C, LPF 1000 ACV, LoZ 1000VAC, Inrush 1000ACA, Continuity, Diode, LCD Display, Backlight, NCV, Data Hold, Max/Min, Hz/Duty, Relative, Flash Light, APO, Low Battery Indication, Overload Protection, High Voltage Warning, Accepts Flex Clamp 3000A (optional accessory), Analogue Bar Graph 31 Segment, 1M Drop Test, CATIII 1000V, CATIV 600V, 6000 Count
RANGE: AUTO
TRMS: YES
SPECIFICATION: CE/RoHS/cETLus
CAT RATING: CAT IV 600V
Features of UT200 Series 1000A True RMS Digital Clamp Meters
Certifications: CE, UKCA, cETLus
● Flashlight button: Short press this button to turn on/off the flashlight
● NCV Multi-Segment Display and audio/visual alarm
● True RMS/Auto backlight
● NCV/Function retention
| Specifications | Range | UT205E | UT206B | UT207B | UT208B |
| AC current (A) | 1000A | ±(2%+5) | ±(2%+5) | ±(2%+5) | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) | ±(2%+5) | ||
| AC current frequency response | 50Hz~60Hz | 50Hz~60Hz | 40Hz~400Hz | 40Hz~400Hz | |
| Inrush current (A) | 1000A | ±(10%+10) | ±(10%+10) | ±(10%+10) | |
| AC voltage (V) | 1000V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| DC voltage (V) | 1000V | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) |
| Low pas filter (LPF ACV) | 1000V | ±(2%+5) | ±(2%+5) | ±(2%+5) | |
| AC voltage frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | |
| LoZ ACV | 1000V | ±(2%+5) | ±(2%+5) | ±(2%+5) | |
| Resistance (Ω) | 60MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ±(4%+5) |
| Temperature | -40℃~1000℃ | ±(1%+2) | ±(1%+2) | ||
| -40℉~1832℉ | ±(1%+4) | ±(1%+4) | |||
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) | ±(2.6%+7) | ±(2.6%+7) | ±(2.6%+7) |
| Analog bar | 31 | 31 | 31 | ||
| Flexible current probe (optional) | Extends up to 3000A | √ | √ | ||
| Zero mode | √ | √ | |||
| Display count | 6000 | 6000 | 6000 | 6000 | |
| Jaw opening | 42mm | 42mm | 42mm | 42mm | |
| General Characteristics | |||||
| Power | 1.5V battery (R03) x 3 | ||||
| Display | 43mm x 45mm | ||||
| Product net weight | UT205E/UT206B: 465g; UT207B/UT208B: 420g | ||||
| Product size | 272mm x 81mm x 43.5mm | ||||
| Standard accessories | Test leads, batteries, point contact temperature probe (UT206B/UT208B), English manual | ||||
| Standard individual packing | Gift box, carrying bag | ||||
| Standard quantity per carton | UT205E/UT206B/UT207B: 10pcs; UT208B: 5pcs | ||||
| Standard carton measurement | UT205E/UT206B/UT207B: 355mm x 330mm x 315mm; UT208B: 355mm x 330mm x 165mm | ||||
| Standard carton gross weight | UT205E/UT206B/UT207B: About 7.1kg; UT208B: About 4.5kg | ||||
