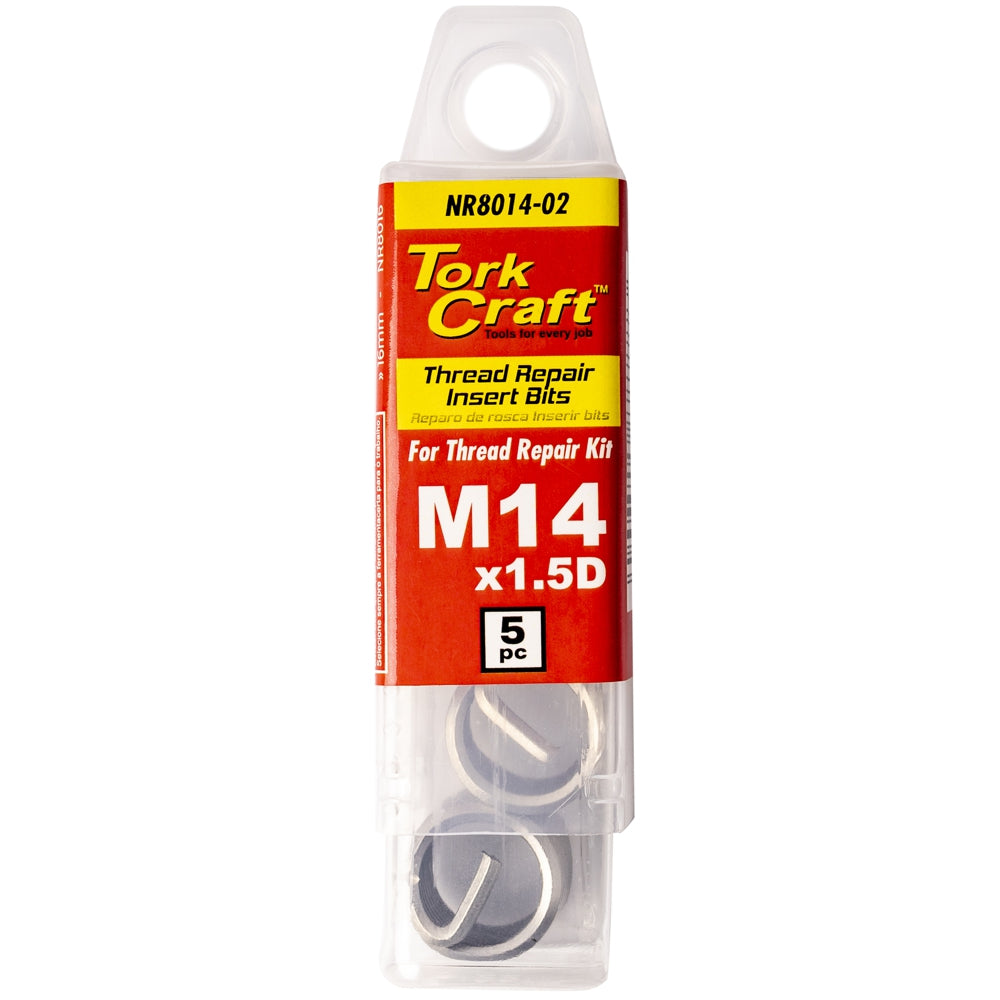

Thread Repair Kit M14 X 1.5d Replacement Inserts 5pce
Thread Repair Kit M14 X 1.5d Replacement Inserts 5pce
Couldn't load pickup availability
Thread Repair insert
M14 x 2.0mm x 1.5D
Thread length: 21 mm
Qty: 5 Pieces
Restore stripped threads easily and permanently with Tork Craft thread repair
kits. Tork Craft application-specific thread repair kits make complex repairs simple
and are a recommended solution by automakers.
Tork Craft inserts are for permanently repairing tapped holes which have been
stripped or damaged due to wear, corrosion, and over-torqing.
Available in M4, M5, M6, M8, M10 and M12 and in three thread lengths per thread
size.
A quality product by Tork Craft
Let's make sense of the numbers:
Example:
M4 x 0.7 x 1.0D
M4: The Metric value of the required thread i.e. Metric
4mm
0.7: This is the pitch of the thread
1.0D: this is the installed length of the insert after installation.
Determining the installed length:
M4 x 1.0D = 4mm deep
M4 x 1.5D = 6mm deep
M4 x 2.0D = 8mm deep
Thus, the depth (length) of the installed insert
will be the metric diameter of the thread (in this case M4) multiplied
by the “D” value.
