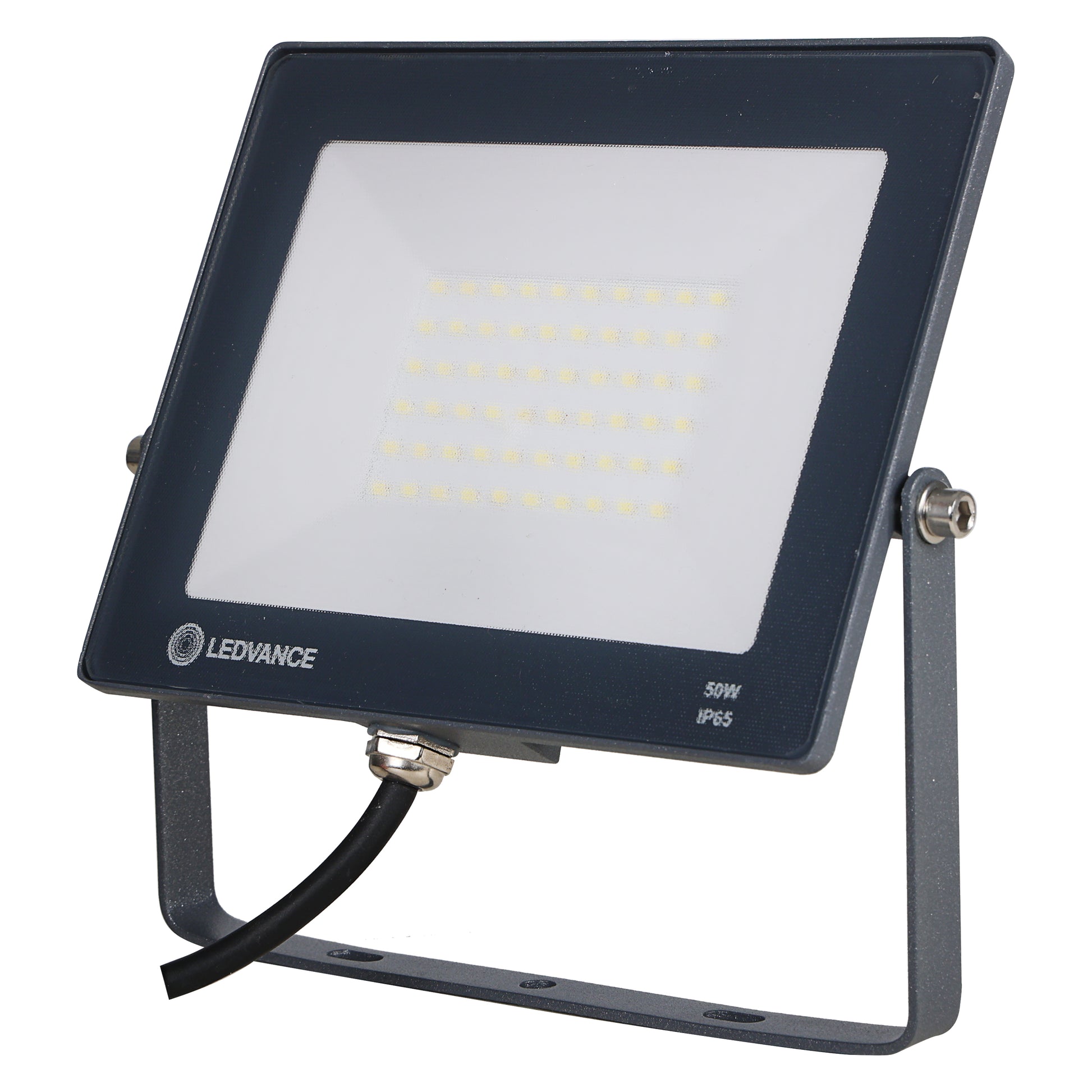

Ledvance/Osram 50W LED Eco Floodlight

Ledvance/Osram 50W LED Eco Floodlight

R 269.00 ZAR
R 269.00 ZAR
Sale Sold out
Tax included.

Product benefits

  • Low windage thanks to the compact and slim design
  • Cable water stopper protects luminaires against the siphonage
  • Texture glass offer a comfortable lighting
  • IP65 protection is suitable for outdoor application

Areas of application

  • Parking
  • Sports facilities
  • Billboard lighting
  • Public areas

Product features

  • Driver on board technology platform
  • Available in 10 W, 20 W, 30 W, 50 W, 100 W, 150 W and 200 W
  • Standard CCT: 3000 K & 6500 K
  • Color rendering index Ra: > 80
  • Power factor: > 0.9
  • Luminaire efficacy: up to 80 lm/W
  • Lifetime: up to 20,000 h
  • Safety compliance certificates: CB, EMC, RoHS 2.0

Electrical data

Nominal wattage 50.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 0.21 A
Inrush current 2.16 A
Inrush current time Th50 3.73 µs
Max. number of luminaires per miniature circuit breaker B16 61
Max. number of luminaires per miniature circuit breaker C16 61
Power factor λ 0.90
Total harmonic distortion ≤ 20 %
Protection class I

Photometrical data

Luminous flux 4000 lm
Luminous efficacy 80 lm/W
Color temperature 6500 K
Light color (designation) Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Luminous intensity 1410
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °

Dimensions & Weight

Length 205.00 mm
Height 22.00 mm
Width 184.00 mm
Product weight 620.00 g
Cable length 0.2 m

Materials & Colors

Product color Gray
Housing color Gray
Body material Aluminum
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+45 °C
Type of protection IP65
Protection class IK (shock resistance) IK06
Dimmable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 20000 h 1)
Lifespan L80/B10 at 25 °C 20000 h 1)

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CB, ROHS, EMC
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
