Gluedevil

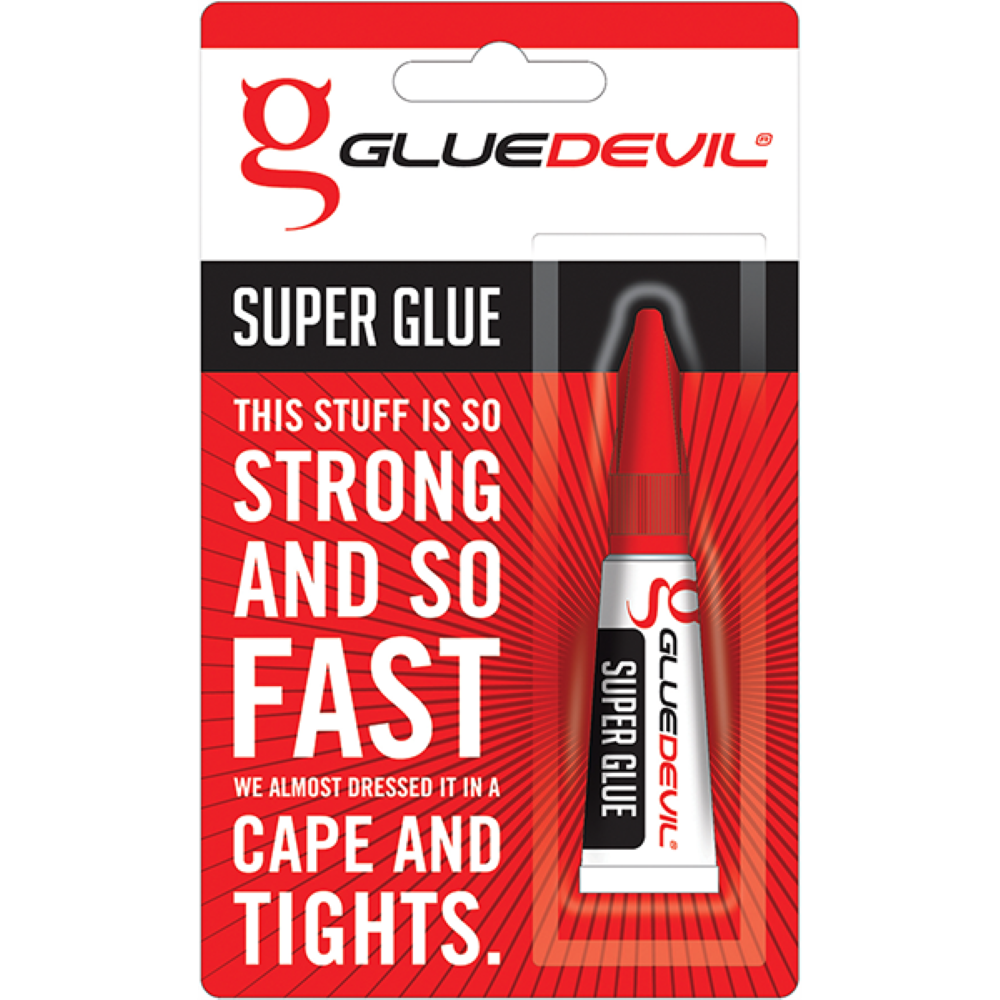

Gluedevil 3g Super Glue
Gluedevil 3g Super Glue
Couldn't load pickup availability
Super Glue
- SUPER GLUE is a really, really, really strong clear liquid adhesive that bonds like lightning at room temperature.
APPLICATIONS
- GLUEDEVIL SUPER GLUE is especially powerful on non-porous surfaces such as metal, ceramics, rubber, plastic, glass, china, to name a few. GlueDevil SUPER GLUE is also potent on porous materials such as leather, wood, fabrics, cardboard and paper.
PRODUCT DESCRIPTION:
GLUEDEVIL SUPER GLUE is a really, really, really strong clear liquid adhesive that bonds like lightning at room temperature. It is especially powerful on non-porous surfaces such as metal, ceramics, rubber, plastic, glass, china etc. Also potent on porous materials such as leather, wood, fabrics, cardboard and paper.
TYPICAL PROPERTIES OF UNCURED MATERIAL:
| Base | Ethyl Cyanoacrylate |
| Colour | Transparent, colourless to yellowish liquid |
| Specific Gravity @ 25ºC | 1.10 |
| Refractive Index (n D 20) | 1.439 |
| Flash Point | See MSDS |
| Vapor Pressure (hPa) | < 1 |
| Viscosity (cP) ，25℃ | 80 – 120 |
| Shelf life | 12 months |
CURING PERFORMANCE:
There are many factors that can influence the rate of cure. These include: the types of substrates used, the condition of the surface to be bonded, the smoothness of the surface, the closeness of the surfaces, the atmospheric conditions etc.
Substrate/ Cure Speed
| Steel to Steel | 10 – 30 seconds |
| Stainless Steel | 30 – 60 seconds |
| Aluminium | 5 – 15 seconds |
| Zinc plated | 30 – 90 seconds |
| ABS to ABS | 5 – 20 seconds |
| ABS to NBR | 3 – 5 seconds |
| ABS to Wood | 5 – 10 seconds |
| NBR to NBR | 5 – 10 seconds |
| Wood | 60 – 75 seconds |
| Polycarbonate | 20 – 60 seconds |
| Leather | 30 – 60 seconds |
Cure Speed / Humidity
The following graph shows the tensile strength developed at different levels of humidity.
Cure Speed / Bond Gap
The rate of cure depends on the bond-gap. A smaller bond-gap results in faster cure speeds.
TYPICAL PROPERTIES OF CURED MATERIAL:
| Physical Properties | |
| Color | Clear |
| Coefficient of Thermal Expansion (K-1) | 100 x 10-6 |
| Coefficient of Thermal Conductivity (W/m.K) | 0.10 |
| Softening Point | 165ºC |
| Electrical Properties | |
| Volume Resistivity (Ω.cm) | 1 x 1016 |
| Surface Resistivity (Ω) | 1 x 1016 |
| Dielectric Constant @ 10 kHz | 2.75 |
| Dielectric Dissipation Factor @ 10 kHz | <0.02 |
| Dielectric Breakdown Strength (kV/mm) | 25 |
ADHESIVE PERFORMANCE:
After 24 hours at 25ºC.
| Tensile Strength | |
| Steel | 190 – 210 Kg/ cm2 |
| Stainless Steel | 250 – 450 Kg/ cm2 |
| Aluminum | 170 – 190 Kg/ cm2 |
| Copper | 150 – 170 Kg/ cm2 |
| PVC | 40 – 60 Kg/ cm2 |
| ABS | 50 – 70 Kg/ cm2 |
| Polycarbonate | 80 – 120 Kg/ cm2 |
| Polystyrene | 30 – 45 Kg/ cm2 |
| NBR | 5 – 9 Kg/ cm2 |
| SBR | 5 – 10 Kg/ cm2 |
TYPICAL ENVIRONMENTAL RESISTANCE:
Hot Strength:
Heat Ageing:
DIRECTIONS FOR USE:
Bond speed is very fast so ensure that parts are properly aligned before bonding. Activators may be required if there are gaps or porous surfaces. Some plastics may require application of a Primer.
- Ensure surfaces to be joined are clean, dry and grease-free.
- Unscrew nozzle from the tube and remove loosed plastic ring. Screw nozzle back onto the tube until the built-in piercer breaks through the membrane, while taking care not to squeeze the tube.
- Apply GlueDevil Super Glue to one surface only.
- Join surfaces immediately and apply pressure for 30 seconds.
- Clear nozzle, replace cap and store in a refrigerator or deep-freeze for maximum product life.
HANDLING AND STORAGE:
Storage:
Keep products in the unopened container in a cool and dry place. Best when stored at 2°C to 8°C. Temperatures less than 2°C can adversely affect product properties. Do not freeze. Keep container tightly closed until ready for use.
Handling:
Material removed from containers may be contaminated during use. Do not pour any of the product back into the original container. Misuse of the product will void all warrantees.
PACKAGING:
3g single card, 3g value pack, 3g display card of 12
PRECAUTIONS:
- Use in well-ventilated areas.
- Avoid contact with skin and eyes. If contact with skin occurs, rinse with warm water or dissolve gradually with solvent such as acetone, or nitromethane. Do not try to remove forcibly. If adhesive gets into eyes, rinse thoroughly and seek medical attention immediately.
- Keep out of reach of children.
- Keep adhesive in a cool, dry place at 20°C -25°C (68°F -77°F). For long-term storage, refrigeration (2oC or 35oF) is recommended.
HEALTH AND SAFETY:
For more information and advice on the safe handling, storage and disposal of chemical products, users shall refer to the most recent Material Safety Data Sheet containing, physical, ecological, and toxicological and other safety related data
